Supported Confluence Versions

This version of the projectdoc Toolbox requires at minimum the latest version of Confluence 5.8.x.

Versions 5.5, 5.6, and 5.7 are no longer supported for new features.

Attached Properties

With PDAC-718 - Getting issue details... STATUS the projectdoc Toolbox allows to specify document properties as attachments to the Confluence page.

This enhancement makes it easier to add and updated exported properties from a system.

mail.imap.user=jane.doe
mail.imap.host=mail.smartics.eu

Tour-by-Property

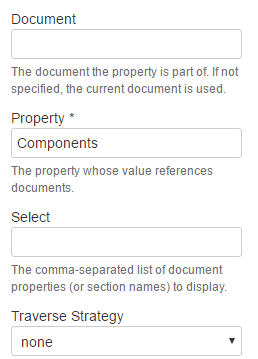

Program the table of documents by a document property with the Tour-by-Property Macro. The property lists references to documents.

The list may also be traversed breadth-first or depth-first to include information that is referenced by the processed documents.

List Ancestor Property

The Parent Property Macro renders a property from the parent document right from version one. The new Ancestor Property Macro now provides access to a property from the first ancestor document matching the specified document type.

In case you have a hierarchy of documents with different doctypes, you may access information from a specific doctype from all children. For instance if systems and subsystems are deployed in an environment then all the systems document can easily access information from the environment document, being the root of a tree of system documents.

Doctype Changes

The following changes to the free doctype add-ons come with the new version:

1. The free doctypes support with their latest version the Short Name and Subject properties
2. Blueprint wizards of all doctypes support XHTML in Short Descriptions and space property placeholders in Name and Short Description

For more information, please refer to Related Releases.

Single Value in Name List Macro

The interpretation of the single value parameter of the Name List Macro has changed. Previously by setting this parameter the first value of a comma-separated list of values has been chosen as the single value.

With this version, the whole value, containing commas, will be treated as the one value.

PDAC-743 - Getting issue details... STATUS

Reindex required

Some issues add additional data to the index. The index is updated when the document is saved. To have access to these new properties in Lucene searches, a re-index is required.

Here is the list of issues that require a re-index to provide the new data:

• PDAC-739 - Getting issue details... STATUS
• PDAC-733 - Getting issue details... STATUS
• PDAC-742 - Getting issue details... STATUS

Required Add-on Updates

The following add-ons need to be updated to work with this version of the projectdoc Toolbox.

Recommended Add-on Updates

The following add-ons are recommended to be updated for this new version of the projectdoc Toolbox.

Doctype Add-ons

Doctype add-ons provide space and page blueprints based on the projectdoc Toolbox.

projectdoc Core Doctypes

Key	Summary	T	P	Status	Resolution	Description
PDCORED-107	Limit Support for Confluence Version 5.8.18 and up			Done	Fixed	Due to changes in the projectdoc Toolbox support for Confluence is limited 5.8.18 and up.
PDCORED-120	Profile Type			Done	Fixed	Provide a profile doctype to make it easier to write delegating documents in order to provide additional views on documents.
PDCORED-111	Association Type			Done	Fixed	Provide means to create associations between document instances.
PDCORED-109	Stakeholder Rating Macro			Done	Fixed	Add a rating macro for rendering the power/interest value of a stakeholder.
PDCORED-114	Provide a Subject Property to all Doctypes			Done	Fixed	As a standard organization tool each doctype should have a Subject Property.
PDCORED-113	Provide Short Name for all Doctypes			Done	Fixed	To add context specific names for documents of all doctypes we need to add the Short Name Property to all.
PDCORED-110	Analysis on Stakeholder Template			Done	Fixed	The Stakeholder Doctype needs a section to store analysis information to (possibly) render stakeholder charts.
PDCORED-104	Add Short Name to Doctypes			Done	Fixed	Most doctypes should provide a short name. This allows to specify abbreviations or easy to remember names.
PDCORED-103	Add Publisher to Resource Doctype			Done	Fixed	Add a property to specify the publisher of a resource. This may also be the name of an organization responsible for publishing a standard.
PDCORED-108	Associated Terms for Glossary Item			Done	Fixed	Add a section to the Glossary Item Doctype to render associated terms. While related terms are on the same level, child documents represent specializations, associated terms are those that are part of the term and describe it.
PDCORED-106	Move Short Description first			Done	Fixed	Move the short description properties of doctype homepages to the first table row. Since search hits may list the first lines of text, this will make the short description visible instead of the doctype and the name of the document (that often matches the page title).
PDCORED-117	Rename Medientyp to Typ			Done	Fixed	According to providing a type property for each doctype by the same name, we needt to rename (in the German version) "Medientyp" of the resource doctype to "Typ". Note that this change requires to update the property name in existing documents.
PDCORED-119	Select Transcluded Documents by Title			Done	Fixed	The Module Template selects transcluding documents by name, but should do so by title.
PDCORED-118	Workspace Creation Fails			Done	Fixed	Creation of Workspaces fails on Confluence 6.x with a MySQL error.
PDCORED-116	Replace Light Green Boxes			Done	Fixed	Replace the light green boxes with the heading in the panel body with the dark green boxes where the heading is in the panel head.
PDCORED-112	Provide XHTML and Space Properties in Short Description			Done	Fixed	Make sure that for all templates short descriptions allow XHTML and enforce space property replacement. Currently XHTML is not supported by a view type doctypes and space property replacement is not supported.
PDCORED-105	Short Name Description missing for Organization Doctype			Done	Fixed

17 issues

projectdoc for Software Development

Key	Summary	T	P	Status	Resolution	Description
PDSWDEVD-76	Limit Support for Confluence Version 5.8.18 and up			Done	Fixed	Due to changes in the projectdoc Toolbox support for Confluence is limited 5.8.18 and up.
PDSWDEVD-84	Add Typ Doctypes			Done	Fixed	Replace selection macros with doctype types.
PDSWDEVD-80	Provide Type for Project Constraints			Done	Fixed	Currently the type of a project constraint is bound to the values provided by a selection macro. Users should be able to define their own types of project constraints. Therefore the selection macro should be replaced by a Name List Macro and a new doctype for project constraint types is required.
PDSWDEVD-85	Fix Code Doctype Label Problems			Done	Fixed
PDSWDEVD-78	Provide Short Name for all Doctypes			Done	Fixed	To add context specific names for documents of all doctypes we need to add the Short Name Property to all.
PDSWDEVD-82	Type Home and Index Page References			Done	Fixed	Make the representation of the links to other homepage on the homepage and indexpage of the type doctypes uniform.
PDSWDEVD-77	Provide Space Properties in Short Description			Done	Fixed	Enforce space property replacement for short descriptions for all templates.
PDSWDEVD-88	Fix Homepage Links for Test Report and Test Session			Done	Fixed	Links should point to the index and not to the non-existent homepages.
PDSWDEVD-87	Add Missing Requirements Link			Done	Fixed	Add the missing link to the requirements homepage on the content management page.
PDSWDEVD-83	Technical Debt Validation			Done	Fixed	Add technical debt validation.
PDSWDEVD-79	Fix Partition Generation: Documentation Dashboard			Done	Fixed	The label for the Documentation Dashboard matches that of the Content Management Dashboard. This will override the page on partition generation (where a user wants to create the pages of a space in an existing space).
PDSWDEVD-89	Architecture Decision Homepage Link to Index			Done	Fixed	The link to the index page should hide in case the index page is missing.
PDSWDEVD-86	Qualities Link on Content Management			Done	Fixed
PDSWDEVD-81	Requirement Type Label Fixes			Done	Fixed	Description labels read "Technical Debt" instread of "Requirement Type".
PDSWDEVD-75	Typo in Help Text for Deployment Section			Done	Fixed

15 issues

projectdoc for Agile Planning

Key	Summary	T	P	Status	Resolution	Description
PDAGILE-34	Limit Support for Confluence Version 5.8.18 and up			Done	Fixed	Due to changes in the projectdoc Toolbox support for Confluence is limited 5.8.18 and up.
PDAGILE-33	Adjustment due to API Change in projectdoc Toolbox 1.16.0			Done	Fixed	Due to an API change for issue PDAC-718 Done the update is required and will not work with older versions of the projectdoc Toolbox.
PDAGILE-37	Provide Short Name for all Doctypes			Done	Fixed	To add context specific names for documents of all doctypes we need to add the Short Name Property to all.
PDAGILE-32	Provide Subject Property			Done	Fixed	Provide a subject property for all doctypes (that do not yet have one).
PDAGILE-36	Check that Iteration Dates are specified			Done	Fixed	The user needs to specify the start and end date of the iteration. Otherwise the content in the generated page for these two properties is broken.
PDAGILE-35	Provide Space Properties in Short Description			Done	Fixed	Enforce space property replacement for short descriptions for all templates.
PDAGILE-39	Replace Light Green Boxes			Done	Fixed	Replace the light green boxes with the heading in the panel body with the dark green boxes where the heading is in the panel head.
PDAGILE-38	Wrong Spelling: Dept			Done	Fixed	Technical Debt is missspelled as Technical Dept.

8 issues

projectdoc Add-on for arc42

ARCFOURTWO-26	Limit Support for Confluence Version 5.8.18 and up			Done	Fixed	Due to changes in the projectdoc Toolbox support for Confluence is limited 5.8.18 and up.
ARCFOURTWO-32	Update arc42 V7: Section Titles			Done	Fixed	Updated the main sections of the arc42 Template to match V7.
ARCFOURTWO-29	Provide a Subject Property to all Doctypes			Done	Fixed	As a standard organization tool each doctype should have a Subject Property.
ARCFOURTWO-28	Provide Short Name for all Doctypes			Done	Fixed	To add context specific names for documents of all doctypes we need to add the Short Name Property to all.
ARCFOURTWO-27	Provide Space Properties in Short Description			Done	Fixed	Enforce space property replacement for short descriptions for all templates.
ARCFOURTWO-31	Replace Light Green Boxes			Done	Fixed	Replace the light green boxes with the heading in the panel body with the dark green boxes where the heading is in the panel head.
ARCFOURTWO-30	Wrong Spelling: Dept			Done	Fixed	Technical Debt is missspelled as Technical Dept.

7 issues

projectdoc Developer Diaries

DEVDIARY-48	Limit Support for Confluence Version 5.8.18 and up			Done	Fixed	Due to changes in the projectdoc Toolbox support for Confluence is limited 5.8.18 and up.
DEVDIARY-50	Show Issues with Status Changes			Done	Fixed	Instead of showing only issues that have been resolved on a given day with the day template, we should show all issues that have been changed on that day. This way it is easier to track issues that have been worked on (according status changes) when checking days in the journal.
DEVDIARY-54	Add Link to Previous Work on Event			Done	Fixed	Add a "Continuation of" property to the Event Template to link to an event document this event continues to work on. This makes it easier to track work that is done over a number of events. Currently these links have been added in the references section. Also add a section to collect the documents referenced in a breadth-first manner (although probably there is only one document referenced per event).
DEVDIARY-53	Provide a Subject Property to all Doctypes			Done	Fixed	As a standard organization tool each doctype should have a Subject Property.
DEVDIARY-52	Provide Short Name for all Doctypes			Done	Fixed	To add context specific names for documents of all doctypes we need to add the Short Name Property to all.
DEVDIARY-49	Provide Space Properties in Short Description			Done	Fixed	Enforce space property replacement for short descriptions for all templates.

6 issues
